Bone Plates

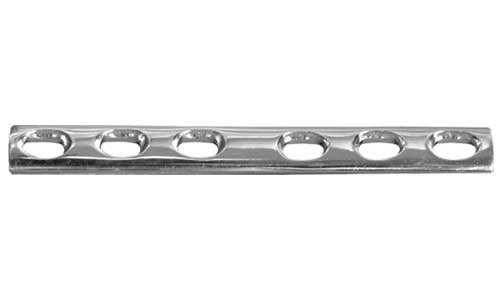

Dynamic Compression Plate,3.5mm, small

Specification

Available in Stainless Steel AISI 316 L.
Fixation with 3.5 and 4.0mm screws
Thickness : 3.0mm
Width : 10.0mm
Hole spacing : 12.0mm
Hole spacing in the centre : 13.0mm

Dynamic Compression Plate, 4.5mm, Narrow

Specification

Available in Stainless Steel AISI 316 L.
Fixation with 4.5 and 6.5mm screws
Thickness : 3.6mm
Width : 12.0mm
Hole spacing : 16.0mm
Hole spacing in the centre : 25.0mm

Dynamic Compression Plate 4.5mm, Broad

Specification

Available in Stainless Steel AISI 316 L.
Fixation with 4.5 and 6.5mm screws
Thickness-3.6mm
Width : 12.0mm
Hole spacing : 16.0mm
Hole spacing in the centre : 25.0mm

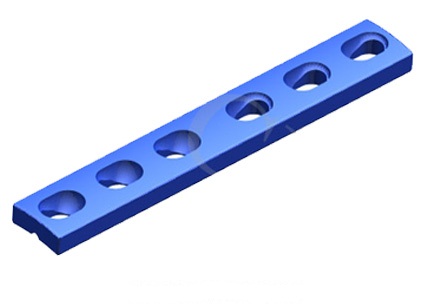

Limited Contact Dynamic Compression Plate, 3.5mm, Small

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Fixation with 3.5 and 4.0mm screws.
Thickness : 4.0mm
Width : 11.0mm
Hole spacing : 13.0mm

Limited Contact Dynamic Compression Plate, 4.5/5.0mm, Narrow

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Fixation with 5.0mm locking head screws and 4.5mm cortex screws.
Thickness : 4.6mm
Width : 13.5mm
Hole spacing : 18.0mm

Limited Contact Dynamic Compression Plate, 4.5/5.0mm, Broad

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Fixation with 5.0mm locking head screws and 4.5mm cortex screws
Thickness-5.2mm
Width-17.5mm
Hole spacing-18.0mm

Dynamic Compression Plate, 2.0mm

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Thickness : up to 6 holes 1.0 mm, 7 to 10 holes 1.5 mm
Width : 5.0mm
Hole spacing : 5.0mm

Dynamic Compression Plate, 2.7mm

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Thickness : 2.0, 2.2, 2.5 & 2.7 mm
Width : 8.0mm
Hole spacing : 8.0mm
Hole spacing in the Center : 12.0mm

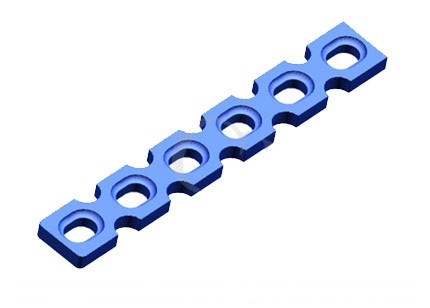

Reconstruction Plate, 3.5mm

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Thickness st. steel : 2.8mm
Thickness Titanium : 3.1mm
Width : 10.0mm
Hole spacing : 12.0mm

Reconstruction Plate, 4.5mm

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Thickness st. steel : 2.8mm
Thickness Titanium : 3.0mm
Width : 12.0mm
Hole spacing : 16.0mm

Pelvic Reconstruction Plate,

Specification

Available in Stainless Steel AISI 316 L.
Thickness :
Width :
Hole spacing :

Condylar Buttress Plate

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Fixation with 4.5mm and 6.5mm screws.
Thickness : 5.0mm
Width : 16.0mm
Hole spacing : 16.0mm

Dynamic Hip Screw Plate

Types

Barrel Lenght : 25 & 38 mm

Degrees 120, 125, 130, 135, 140, 145, 150

Specification

Available in Titanium alloy & Stainless Steel AISI 316 L.
Fixation with 4.5mm cortex screws/ lag screws with compression screws.
Thickness : 5.8mm
Width : 19.0mm
Hole spacing : 16.0mm
Outer barrel diameter : 12.5mm

Dynamic Compression Screw Plate, 95'

Specification

Available in Titanium alloy & Stainless Steel AISI 316 L.
Fixation with 4.5mm cortex screws.
Thickness : 5.4mm
Width : 16.0mm
Hole spacing : 16.0mm
Outer barrel diameter : 12.5mm
Barrel length : 25mm

Cloverleaf Plate

Specification

Available in Titanium alloy & Stainless Steel AISI 316 L.
FFixation with 3.5mm and 4.0mm screws.
Thickness : 2.0mm
Cloverleaf thickness : 1.2mm
Shaft width : 15.2mm

Clavicle Hook Plate

Specification

Available in Titanium alloy & Stainless Steel AISI 316 L.
Fixation with 3.5mm and 4.0mm screws.
Hook Length : 15mm, 18mm (Left & Right)

Lateral Tibial Head Buttress Plate, 4.5mm

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Available for right and left limb.
Fixation with 4.5mm and 6.5mm Screws.
Length : 115 to 250mm

L- Plate, Left & Right, 2.0mm

Specification

Available in Stainless Steel AISI 316 L.
Fixation with 2.0mm screws
Thickness : 1.0mm
Width : 5.0mm

L-Buttress Plate

Types

Left & Right , Buttress Plate

Specification

Available in Stainless Steel AISI 316 L.
Fixation with 4.5mm and 6.5mm Screws.
Thickness : 2.0mm
Width : 16.0mm

T Plate, Oblique Angled, 3.5mm

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Fixation with 3.5 mm and 4.0mm screws
Shaft Thickness St. Steel : 1.5mm
Shaft Thickness Titanium : 1.6mm
Width :10.0mm

T-buttress Plate

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Thickness Stainless Steel : 2.0mm
Thickness Titanium alloy : 2.5mm
Width : 17.0mm

T plate, 2.7mm

Specification

Available in Stainless Steel AISI 316 L.
Fixation with 2.7mm Screws.
Thickness : 1.2mm
Width : 7.0mm

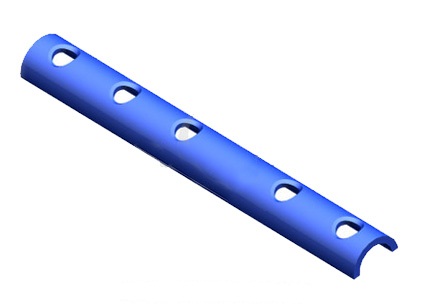

One Third Tubular Plate

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Fixation with 3.5 and 4.0mm screws
Thickness : 1.0mm
Width : 9.0mm
Hole spacing : 12.0 and 16.0mm

Semi Tubular Plate

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Fixation with 4.5mm cortex screws
Thickness st. steel : 1.0mm
Thickness titanium : 1.5mm
Width st. steel : 11.0mm
Width Thickness : 12.0mm
Hole spacing : 16.0mm and 26.0mm

Cobra Head Plate

Specification

Available in Stainless Steel AISI 316 L.
Fixation with 4.5 and 6.5mm screws
Thickness : 6.0mm
Width : 16.0mm
Hole spacing : 16.0mm

Dynamic Trochanter Stabilizer Plate

Specification

Available in Titanium alloy (As per ISO 5832-2) & Stainless Steel AISI 316 L.
Fixation with 4.5mm cortex screws/ lag screws with compression screws
Length : 138 to 147mm
