Interlocking Nails

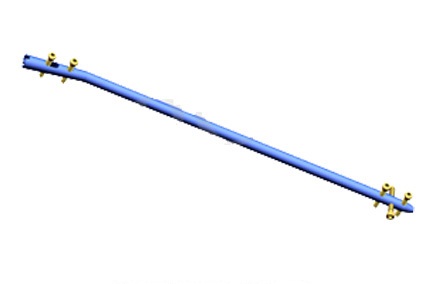

Interlocking Nail for Tibia

Specification

Available in Titanium alloy (As per ISO 5832-3) & Stainless Steel AISI 316 L.
Length : 260mm to 420mm
Nail diameter : 8.0mm to 13.0mm
Proximal diameter : 12.0mm to 13.0mm
Proximal bend : 11 degrees
Fixation with 3.9mm and 4.9 mm self tapping locking screws.

Intended Use / Indication

Fractures of proximal and distal third of tibia.
Unstable tibial diaphyseal fractures.
Comminuted fractures of diaphysis of tibia.
Segment tibial fractures.
Open grade I & II fractures of the tibial diaphysis.

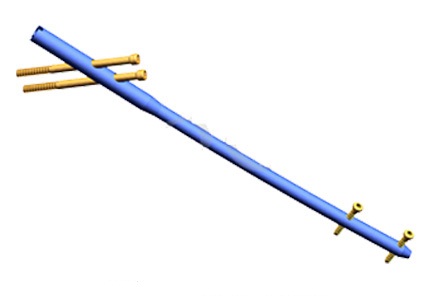

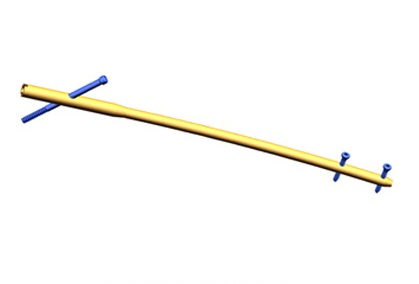

Reconstruction Femoral Nail

Specification

Available in Titanium alloy (As per ISO 5832-3) & Stainless Steel AISI 316 L.
Variants available for Right and Left femur.
Proximal diameter : 13mm
Length : 320 to 440mm
Nail diameter : 9 to 13mm
Fixation with 6.3mm/6.0mm/4.9mm self tapping locking screws.

Intended Use / Indication

Non-comminuted midshaft fractures.
Comminuted shaft fractures.
Subtrochanteric fractures.
Distal third fractures.
Combination fractures of the shaft and neck.
Intertrochanteric fractures.
Combined intertrochanteric and subtrochanteric fractures.
Reconstruction of tumour resection.
For fixation of fractures of femur.

Elastic Nail (Flexible Nail)

Specification

Available in Titanium alloy (As per ISO 5832-3).
Length : 440mm.
Nail diameter : 2.0, 2.5, 3.0, 3.5 & 4.0mm

Intended Use / Indication

Measure the narrowest diameter of the medullary canal with a ruler. The proper nail diameter is no more than forty percent of the width of the canal.
The following sizes are typically used for children of average stature:
6–8 years old 3.0 mm nails
9–11 years old 3.5 mm nails
12 –14 years old 4.0 mm nails
Select two nails of the same diameter so the opposing bending forces are equal, avoiding malalignment.
